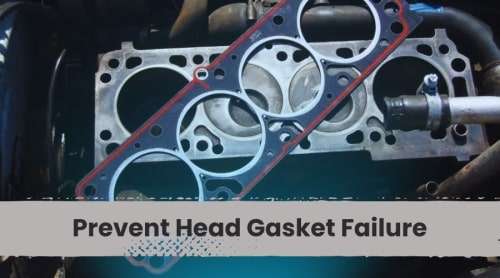

Prevent Head Gasket Failure: Essential Tips and Tricks

In severe cases, a burst head gasket may necessitate replacing the entire engine, which can be quite expensive. Blown gaskets have multiple causes, such as lack of engine ventilation, engine knocking, or faulty gasket installation. In this blog, we will tell you about different ways to avoid this serious vehicle issue that leads to breakdown so that you can avoid the hefty bill that comes from the repair.

Understanding Gasket Blowout

Before you start to question the function of a blown gasket, you need to know what function the gasket actually performs in a vehicle. A conventional car requires a coolant that circulates in the engine block to keep the engine cool during internal combustion.

Since the operating conditions within the engine can become intense and the gasket is required to withstand high temperatures and pressures, over time continuously, it can become worn out.

A major cause of head gasket failure is an overheated engine. What happens is that the cylinder head expands due to high temperature which damages the gasket and causes the coolant to enter the engine block and leads to oil and coolant mixing together.

Symptoms that Signal Gasket Issues

Seeing white smoke emitting from the exhaust pipe

An overheated engine.

A radiator has bubbles in it, or the coolant overflow tank has bubbles.

Engine oil appears whitish rather than transparent.

Frequent replacement of coolant even when there is no sign of external leakage.

Preventing Gaskets Failure: Precautions and Measures to Take

Select A Compatible Type

All car manufacturers specify the material construction of the gasket that is suited to the engine head. Opting for a gasket material that is not compatible with the engine is the fastest and most guaranteed way of running into a gasket failure problem.

Gasket designs and materials vary considerably. Some gaskets feature copper wire rings for aluminum cylinder heads. Others come with a steel wire ring, which is suited for induction engines, and then there are multi-layer steel gaskets for high-performance racing engines.

Take Precautions while Tinkering With The Gaskets

Make sure to wash hands before you touch gasket heads. Grease and dirt can get stuck between the surface and prevent foolproof sealing. Additionally take extra care in handling a clean cylinder head and never set it on the floor as dirt can stick on the deck which will result in improper sealing.

Check The Smoothness Of Cylinder

Another worthy precaution to take is to regularly inspect the flatness of cylinder head surface and engine block surface. The way to go about it is to place a straight edge and then use a feeler guage to measure clearance. If the clearance is high than it means that the surface is uneven and the seal would not fit correctly on it.

Closely Inspect For Surface Unevenness

The head and block deck surfaces need to becompletely smooth and free from rusting, cracks and dents since these surface imperfections are potential areas for leakage. If any of the marks and surface imperfections are present then the head or block needs to be resurfaced.

Clean Up Desk Surfaces

The deck surface should be completely free from old gasket residue. The best way to clean it is to utilize a surface degreaser and a wire brush to remove the residual material.

Do Not Use Damaged Head Bolts

Inspect your bolt threads thoroughly and replace any that are distorted or damaged. Dirty or broken threads might result in inaccurate torque readings and reduce the bolt's total gripping force. If applicable, grease the bottom of your head bolts and washers.

Inspect The Head Bolt Holes

Similar to broken bolts, bolt holes with distorted threads, dirt, or other residue can limit clamping force. Unless otherwise specified in the manual, use a bottoming tap in each bolt hole. The tops of the holes should also be chamfered to prevent the highest threads from pulling above the deck surface when the bolts are tightened.

Use Washers On Aluminum Heads

If you have aluminum cylinder heads, use hardened steel washers under the head bolts to avoid galling the head surface and to ensure even clamping on the soft aluminum. Most high-quality head bolt kits include washers. Again, lube the bottom of the head bolts and washers.

Conclusion

Preventing head gasket failure is crucial for maintaining your vehicle's performance and avoiding costly repairs. By staying vigilant with regular maintenance, such as monitoring coolant levels, checking for leaks, and ensuring your engine doesn't overheat, you can significantly reduce the risk of a head gasket blowout.

By following these crucial points, you can prolong the life of your engine and guarantee the best possible performance from your vehicle. Timely maintenance and regular checks make driving safer and more pleasurable.
